Product information

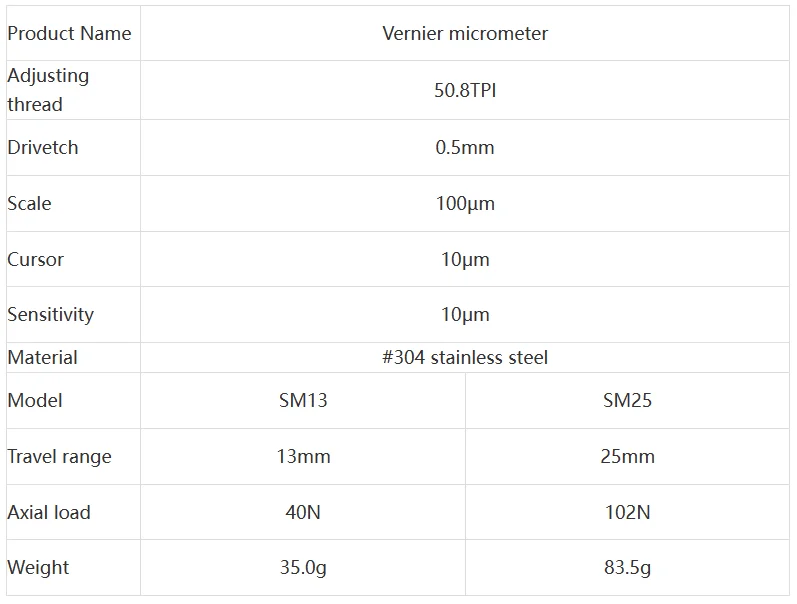

The vernier micrometer is the standard drive for the manual actuators of most stages. The SM25 has a stroke of 25mm and a load capacity of 23lb. The SM13 has a stroke of 13mm and a load capacity of 9lb. The pitch of the micrometer is 0.5mm (50.8TPI), and it is directly read in increments of 100um, and the vernier reading is 10μm.
Characteristic
▶ The vernier micrometer is the standard driver of the manual actuator of most stages;
▶ Standard Ø9.5mm installation sleeve handle, knurled adjustment knob, easy to pinch and hold;
▶ SM25 stroke range is 25mm, load capacity is 23lb;
▶ SM13 stroke range is 13mm, load capacity is 9lb;
▶ Pitch is 0.5mm (50.8TPI), read directly in increments of 100μm, the vernier reading is 10μm;
▶With hexagonal recessed hole, it can be adjusted in a small space;
Products Description
The spindle end provides single-point contact, and the striped friction sleeve can maintain constant force, making adjustment and positioning more precise, effectively avoiding errors caused by excessive force, and reducing positioning and alignment errors.
The stroke range of SM25 micrometer head is 25mm, and the stroke range of SM13 micrometer head is 13mm.The vernier scale is 1mm; the pitch is 0.5mm, and it is directly read in 100μm increments, and the vernier reading is 10μm, 0.5mm/rev, scale 100μm (horizontal),vernier scale 10μm (vertical) ; the laser marking scale is clear, friction resistance is not easy to drop characters, small errors, and more accurate measurement;The micrometer knob has a hexagonal recessed hole, which can be adjusted in a small space with a hexagonal wrench, adapting to various installation scenarios, and has higher compatibility;
Measurement error: Please allow a small measurement error. - Additional Information
-
Additional Information
SKU SM13 25 - Reviews
-
