Oeabt M-BASE-D Optical Stainless Steel Fork Press Plate Breadboard Fixing Element Precision Experiment Base

Product information

Characteristic

►Attach a pedestal post or post bracket to an optical table or breadboard;

►Rigid one-piece structure with undercut for significantly improved clamping stability;

►The pressure plate can be rotated 360° to select the appropriate mounting hole;

►Comes with M6 column head screws for easy assembly and installation;

Description

(1) When used with a Ø1" base post or a Ø12mm post bracket, the fork clamp can provide good clamping force, form three-point contact with the platform to improve stability, and be highly flexible. For building installations composed of mini-series components and rich optomechanical pieces.

(2) The fork clamp can be rotated 360° around the base post or post bracket to find suitable mounting holes on the optical table or breadboard.

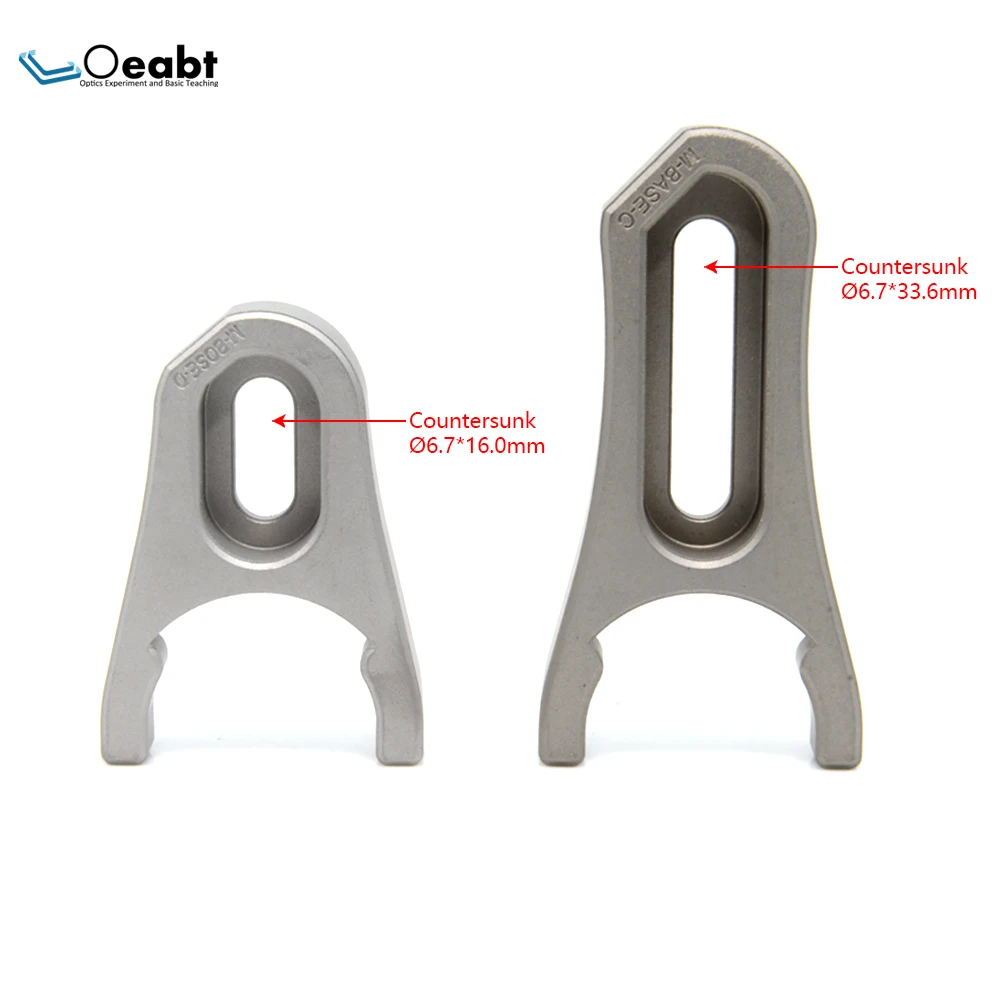

(3) In order to flexibly position the post assembly, the pressure block is available with a length of 16.0mm or 33.6mm countersunk groove, and the M-BASE-D is more convenient to build in crowded scenes because of its compact appearance.

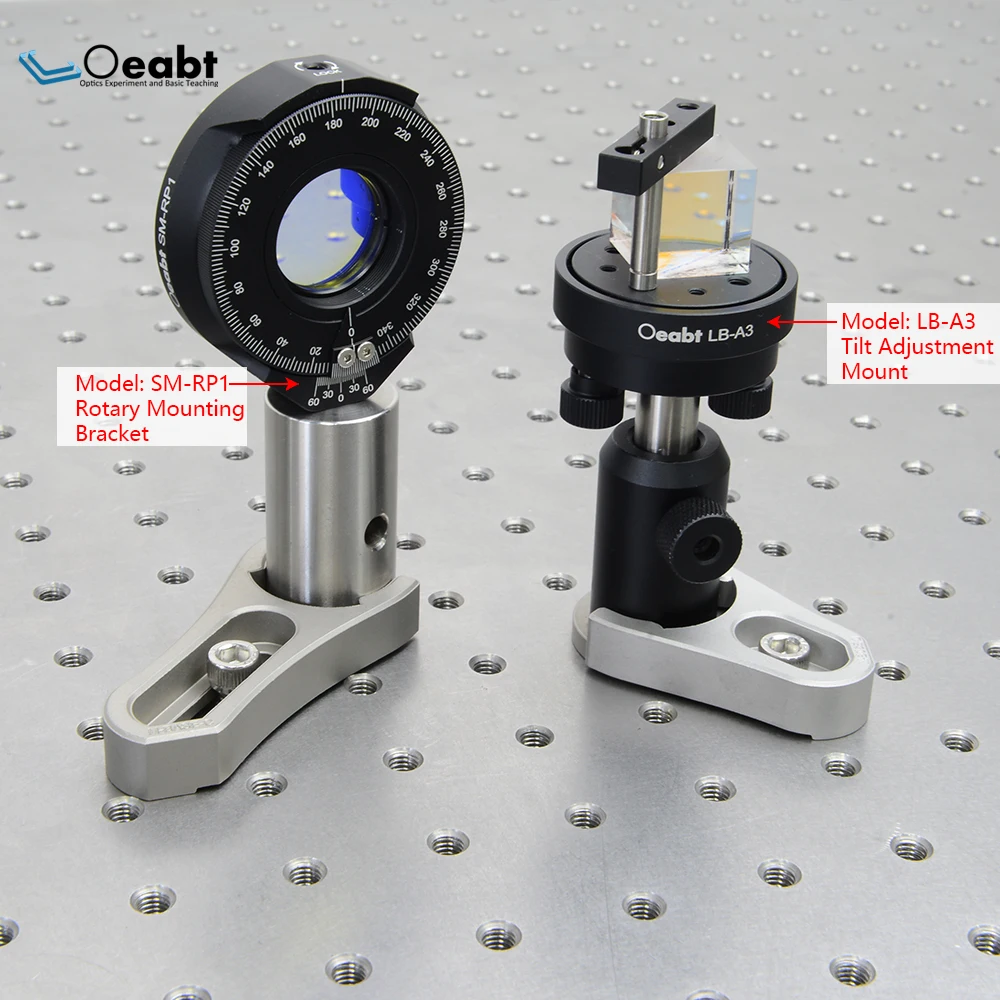

Application scenario display

We supply a wide range of optics to create an easy-to-build experimental platform in an optical system.

Why do we choose Alcoa 7075 aluminum alloy?

Lighter, stronger, more durable, and superior thermal stability

Because 7075 has better mechanical properties, and has good ductility, high strength, toughness and good fatigue resistance. Under the same material, the 7075 is 64% higher and 58% higher than the 6061, and the tensile strength and strength are 85% and 82% higher, respectively.

Ingenuity, excellence

In the eyes of the refined craftsman, the micron-level gap of the precision thread pair will lead to deviations in the optical test results. Only after dozens of manual grinding and inspections, we are careful and ingenious, only to create a more stable and reliable optical machine product. To help your experiment, teaching and research and development projects go smoothly.

 Measurement error: Please allow a small measurement error.
