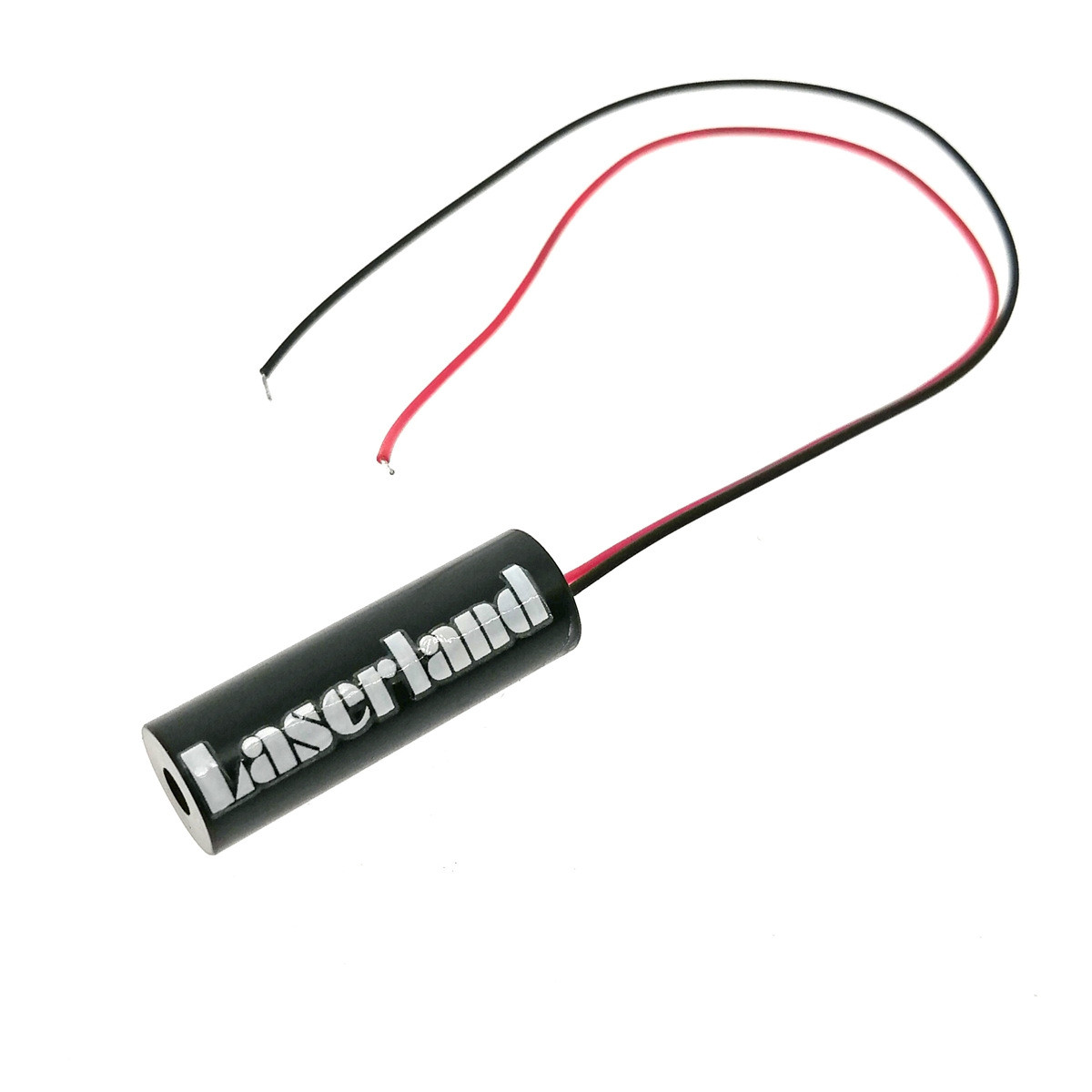

Laserland 10*30mm 850nm 20mW Infrared Dot Laser Module Diode DC 3V~5V

Description:

Size: φ 10 × 30mm(we have other size, contact us for it.)

Material:  copper/Aluminum(send at random)

Surface Treatment / Color: copper/Black

Life: continuous output and life> 10,000 hours

Output wavelength:850nm / ± 5nm

Output power: <20mw

Spot shape / Diameter: oblong Spot

Circuit control:  APC circuit

Operating Voltage: DC  3V~5V

Working Current:  <80mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10°C ~ +40 °C

Storage temperature: -20 °C ~ +40 °C

Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.

Note :This is a infreared laser module, the dot can not be seen by the bared eye, you need a camera or a special glasses to see the dot.

The dot is not a perfect circle, it is a oblong spot.

The 850nm laser has red bomb phnomenon.
